An octave plot (Edgar and Flyvbjerg 2018) is a histogram showing the OTU abundance distribution for a sample or a set of samples. This is a method for visualizing alpha diversity.

Histogram bars may be colored to indicate OTUs which may be spurious due to sequence errors or cross-talk.

Abundances are binned so that the height of a histogram bar is the number of OTUs in that bin. Each bin is defined by a range of abundances, and each bin is double the size of the previous bin. The first bin has singletons (OTUs with abundance = 1), the second bin has doublets and triplets (OTUs with abundances 2 and 3), the third bin has abundances 4 to 7 and so on. This ensures that on a logarithmic scale, bins are evenly spaced and have the same size. Other bin boundaries proposed in the literature, e.g. (Preston 1948), have uneven bins which can cause distortion of the distribution shape (Edgar and Flyvbjerg 2018).

You can think of the *x* axis of the plot as
using a logarithmic scale with base 2. Note that there are two different
numbers which double from one bin to the next: (a) the *minimum* abundance, and (b) the
*range* of abundances (how many distinct abundances are in the bin).

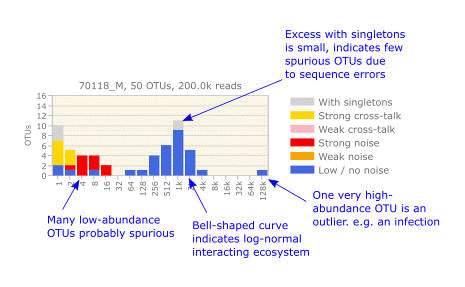

The example below illustrates features of an abundance
distribution which can be seen in an octave plot. It was generated from
reads of sample 70118 from
Yow *et al* 2017.

Octave plots are a modified version of Preston plots (Preston, 1948), which introduced the term "octaves" for bins which double in size, by analogy with a musical note which doubles in frequency in each successive octave (middle C is 262Hz, C' is 524Hz, C'' is 1048Hz and so on). The key modifications (pun intended) in our octave plots are the bin boundaries, which are critically important for maintaining the shape of a distribution under incomplete sampling, and coloring to indicate likely spurious OTUs.

**Example octave plots**
Yow 2017 study with singleton excess, cross-talk
and noise prediction

Yow 2017 study with singleton excess only

**References**M. Yow

F.W. Preston (1948), The commonness and rarity of species,

R.C. Edgar and H. Flyvbjerg (2018), Octave plots for visualizing diversity of microbial OTUs, https://doi.org/10.1101/389833
